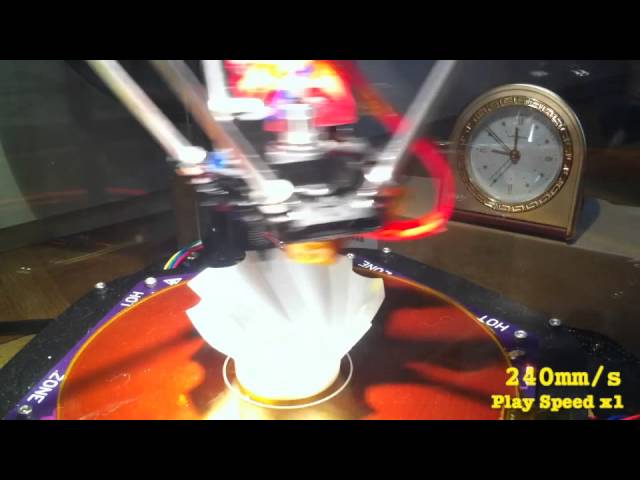

same print condition the previous movie except max. print speed up to 350mm/s and max. acceleration is 9000mm/s^2.
The result was improved to 30:20 (previous result was 31:59)

http://www.aynik-tech.jp

STL file: spiral vase http://www.thingiverse.com/thing:222266
print size: 40% (height=100mm)

max print speed 350mm/s
max acceleration 9000mm/s^2
Z pitch 0.1mm

Base printer: Trino which is one of the delta printer made of Genkei. This printer is covered with 3 acrylic plates around for body rigidity and keeping ambient temperature high. But top is open, so, I attached acrylic plate to top and 60W dichroic-coated reflector tungsten halogen lamp with fan for heating the chamber to around 40°C.

Controller: Momoinololu M3 made of IT shop 'et cetera' which is compatible of the Smoothieboard (NXP LPC 1769 Cortex-M3 chip). I modified some I/O ports.

Extruder: Spitfire with TatsuV2 drive gear made of Deezmaker.

Hotend: E3D V6 with 0.4mm nozzle

LCD: LCD 12864 Graphic Smart Controller made of Sintron tech usa.

Filament:…
