Modular Carriage for TEVO Black Widow
Note : Do not hesitate to leave me a little tip if you like the design. That helps me to pay the filament I waste when I print prototypes.
Description

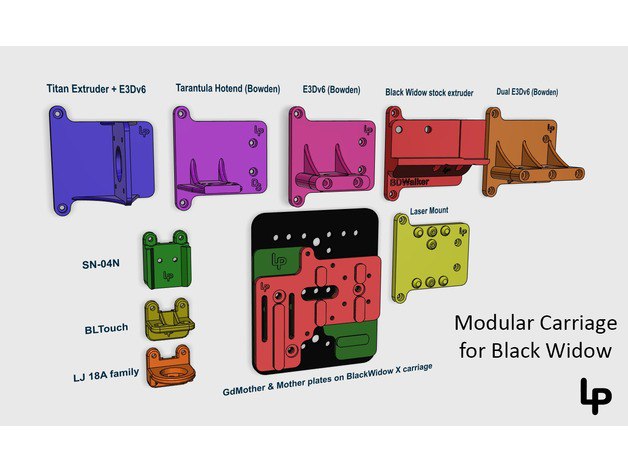

This is a modular carriage for the TEVO Black Widow. The motherplate is fixed directly on the CNC X-carriage. Then you can add daughter-plates depending on your setup.
Note for TitanExtruder daughter plate : I didn't find a good way to leave the tension bolt cleared. But as the daughter plate is easy removable, I manage a hole to access that tension bolt.
Note : This modular carriage is also compatible with my fanduct : http://www.thingiverse.com/thing:1953697
Offsets for Sensors
I've designed the sensor mounts so they've all got the same coordinates.
Plate for Tevo Tarantula hotend or E3Dv6 : X: -40 ; Y: +10
Plate for Titan+E3Dv6 direct extruder : X: -40 ; Y: +16
Plate for Dual E3Dv6 : X1: -40 ; X2 : -65 ; Y +10
Additional hardware
(under construction)
3 flat head M5 screws (the ones delivered with the Black Widow
3 M5 nylon…
