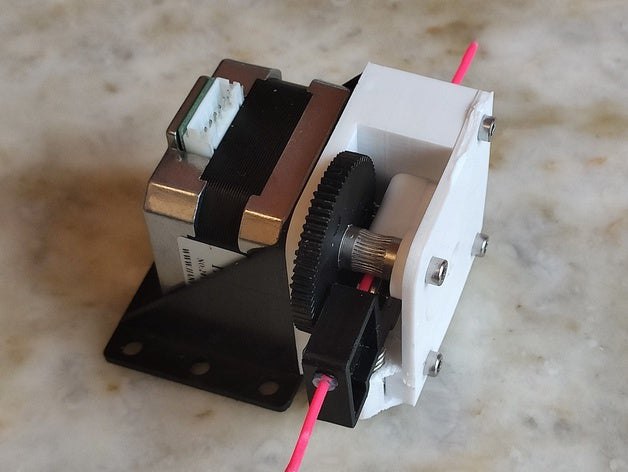

This is a remix of remix by mihatomi of E3D Titan extruder.
Just added gaps and made minor corrections so it could be assembled. I didn't edit the idler lever 'cause I don't need it and it seems to be OK.
Print recommendations:
Add support blocker to the body where the nut is located. That place can be printed without support using the bridge feature of a slicer. The only thing you'll have to do - is to drill out that closing later.
The filament guide is better to be printed with 0.1 layer height and SLOWLY. And probably it will be better to close the base of a small hole and print it without supports (again).
For those of you who wants to add or correct something - .STEP and .F3D files are included. And of course - feel free to ask.
==========
Ремикс на ремикс E3D'шного Титана.
Добавил зазоры в сопрягаемых частях деталей, внес небольшие корректировки, чтобы можно было его собрать без напильника и бубна. Вроде бы всех тараканов отловил. Но это не точно. :) Лапку прижима не правил - во-первых…
