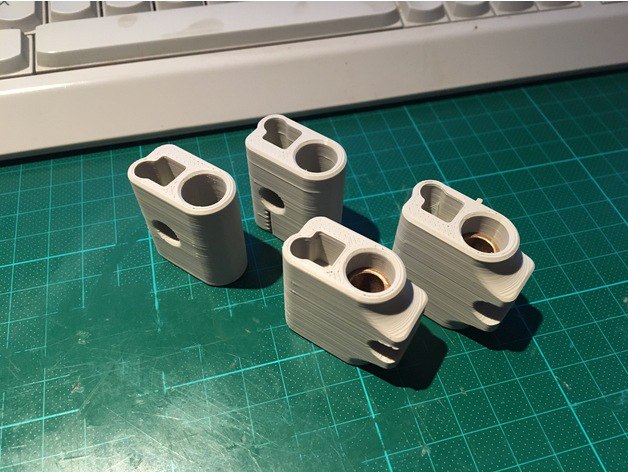

Bushing Blocks / Sliding Adapter for Ultimaker and Clones
This is Version 2 of my Sliding-Blocks, nicer design, less parts to assemble it still works with 8mm rods on all axis, 6mm GT2-Belt and 1 Sinterbronze-Bearings/Block. The distance between the rods is 18mm, like the original Ultimaker. So you can use the original mount for hotends.
But if you install the sliders, the rods are lay up on the sliders, so you have an additional spce on the z-axis.
What you Need to install:
4x Sinterbearings - 8 mm x 11 mm - 20 mm Long
4x M3x25mm screws
4x M3 nuts self-locking
