Thingiverse latest update makes all text format broken and all images shown washed out for whatever reason! I will need to move the project to something like github since thingiverse latest update is a fail anyways.
All SLTs are in the .zip file included. Updates will be done within that zip.
I will also post updates in the comments, so if you want to follow the project, make sure to 'watch' this ;-)
Description

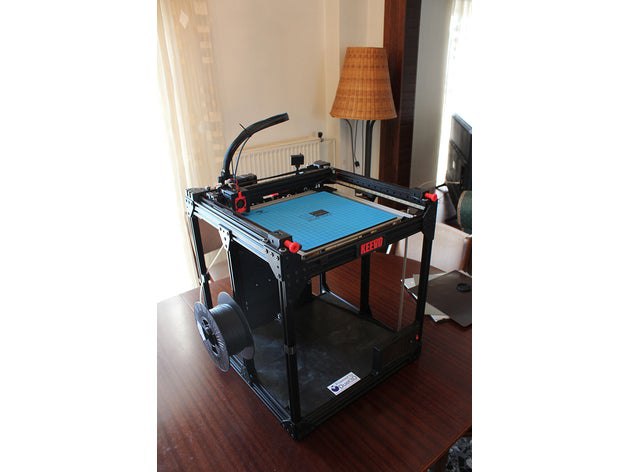

KEEVO is the second iteration and update of my previous 3D printer.
(PS: KEEVO = A derivative word for Cube in Greek)
Open:
Partially Enclosed:
Specs / Features
CoreXY with low profile belt paths, crossing on the back side.
2020 and 2040 extrusion profile frame. 500x500mm XY footprint.
320x310mm (max) XY print volume. Customizable Z/Height (380mm default).
MGN12 Linear Guides for all axis.
One motor, triple leadscrew with 2:1 reduction ratio for Z axis.
Minimalistic approach and easy to print parts. No "overkills". No part need supports.
Easy to source, readily available materials. No custom machining.…
