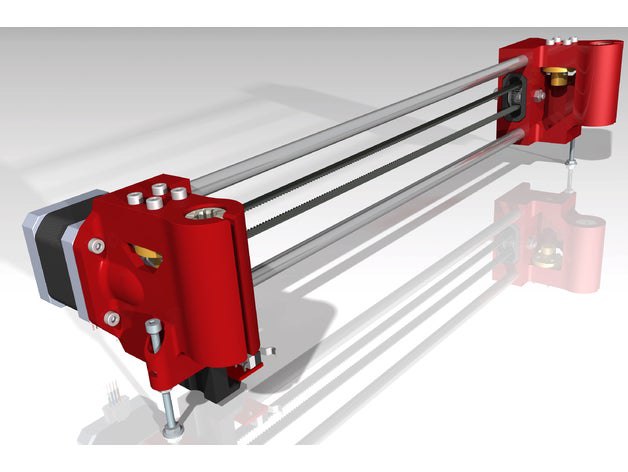

Custom design of the  Anycubic I3M Z(X) axis, aiming to solve to most severe design & construction problem of this printer: the weak, wobbly, flimsy original Z(X) axis.
This modification adds a clear visual upgrade to the 3d prints -  the printing quality becomes comparable to the (legendary...) printing quality of the original  Prusa printers. Of course a decent extruder is required too - e.g. the BMG clone I use on my Bowden machine looks able to handle the tasks.
The axis is fully compatible with the original  Anycubic 50mm X-gantry system and can be used for any  Anycubic I3M original or customized configuration - original X carriage or customised X-carriage, with cable chain or not, with extruder fixed on Z axis (original design), on top of the frame or direct drive. Pictures show these various configurations, sometimes mixed together.
The RHS carriage has a built in, very effective belt tensioning system, solving another missing feature of the original  Anycubic design.
The costs for this modification…
