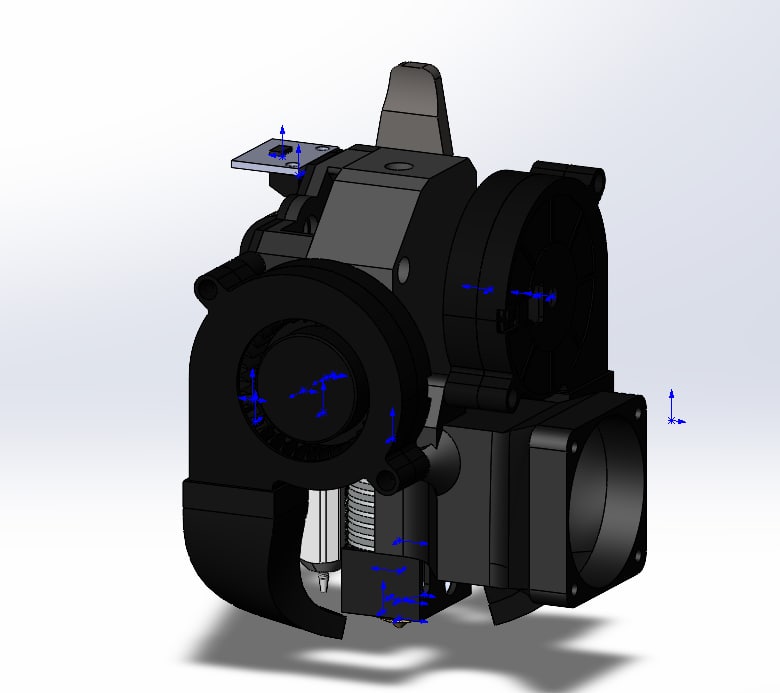

This is a remix of Voron afterburner mount for  Ender 3 (bmg direct drive) https://www.thingiverse.com/thing:4614384 I will tag it as a remix once Thingiverse is working again. This is for the newest version of the Afterburner, not the beta 1 version. It has some slight changes that make it easier to put together. I provided the Afterburner files in case they change again. Of you can get them from the Voron GitHub
Updates
I added an  Ender 5 mount but it's untested. It should work, but I'm not sure. The bolt positions were the same as the Ender3 and CR-10. I just added a cut out for the belt on the left side. If you test it and it works, please let me know. Thanks.
Marlin settings
X_PROBE_OFFSET_FROM_EXTRUDER 37.10
Y_PROBE_OFFSET_FROM_EXTRUDER 9.25
Z_PROBE_OFFSET_FROM_EXTRUDER -2
X_MIN_POS -15
Y_MIN_POS -15
LEFT_PROBE_BED_POSITION 25
RIGHT_PROBE_BED_POSITION 275
Please help support my designs by using the affiliate links below:
Stepper motorThe stepper motor must have a shaft length of 20mm like the ones below.…

Last updated: July 31, 2021 (see Change log section near the bottom of this post)
A compact and easy to print direct drive mount for BMG extruders, V6 hotends, and ABL setups. This is compatible with open carriage printers such as an  Ender 3 (Pro), Tevo Tornado, Alfawise U20, etc.
This excellent design is originally made by Adolf_Muffin, but I made a couple of improvements:
M3 nut mounting holes and screws.
Better BLTouch mount - the original was fragile and it would hit the tension belt adjuster at max X.
Better cable route on Carriage Mount -  moved the original cable route from the right to the left.
List of screws and nuts needed.
NEW: MGN12 Linear Rail compatible ²
Guides for Slicing, Assembly, Firmware Config, and Calibration.
— — — — — — — — — — — — — — — — — — — — — — — — — —
Check out the remixes for different machines:
Tronxy X5S by SoDakDave
Ender 3 V2 by db9mat ¹
CR-10 V2/V3 by IssaP
For 18mm EZABL / Capacitive Probes
Check out CephDigital's remix!
His post includes probe offsets and other important…

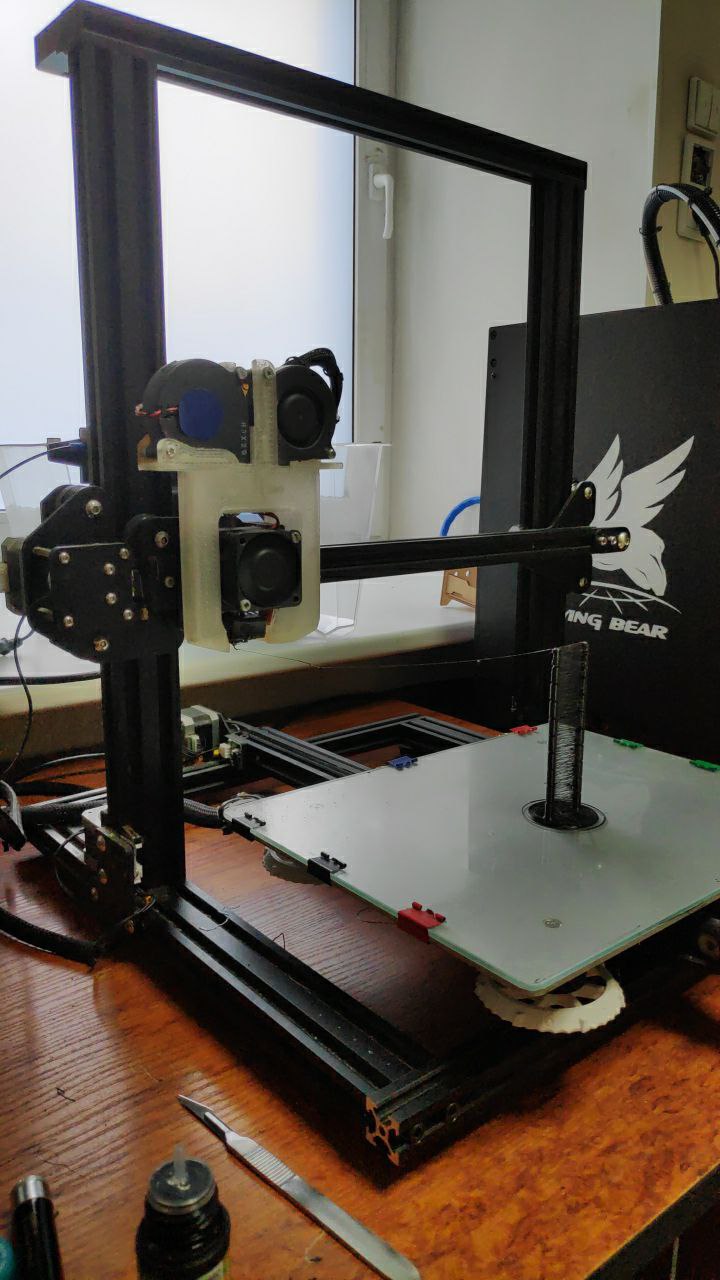

This is a re-upload of my popular direct drive conversion for  Creality printers (originally developped for the CR-10). The original model was accidentally deleted from Thingiverse.
This is the design from which Bondtech derived his own upgrade kit as well as Triangle lab (https://www.bondtech.se/product/direct-drive-upgrade-kit-creality3d-cr10s/)
I personally no longer use it and no longer own a CR-10

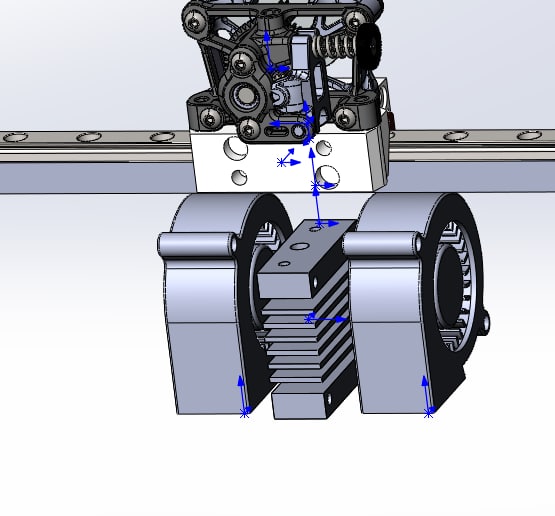

The design is based on :
A bondtech BMG extruder
An E3D V6 hotend
A 50x15 blower
A 40x20 Noctua fan
You can use any 40x20 fan but if you don't use the Noctua you will need to grind slightly one  edge of the fan to clear an interference with a screw that attach a V wheel.
The rear part it attached to the carriage with 3 M3 screws. For the 2 screws that are on each side of the hotend, you need to use countersunk head screws with a washers (else you will have interference with the hotend radiator)
All screws are M3 but apologies, I no longer remember what exact length they are.
There are some videos on Youtube that…
