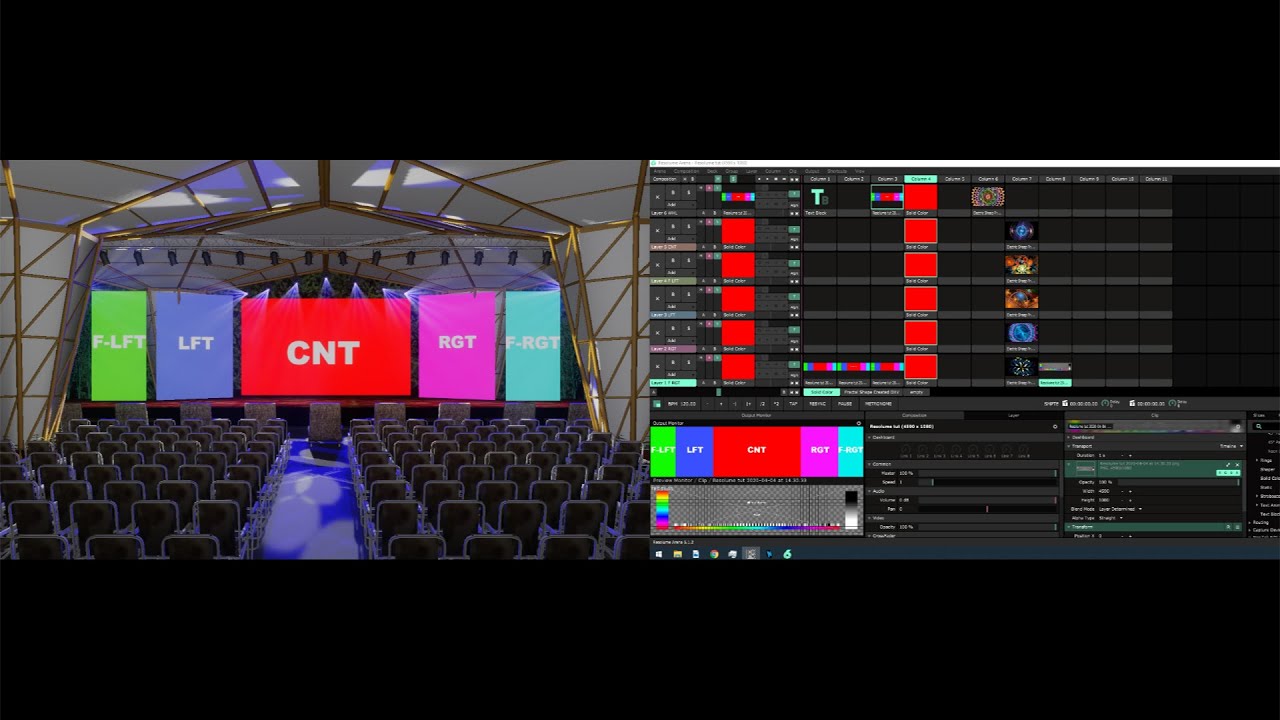

Mapping a Resolume composition to an LED screen setup, based on a raster image or template of the LED output. This is a quick overview of the Advanced Output setup in Resolume Arena6

An overview of the routing pipeline in Resolume and how to create complex video routing setups with Groups, layers, slices, and routers.
Resolume's layer system is very easy to understand and makes getting start very quickly.
But Resolume also has the ability to create quite a complex video routing.





Need some sweet VJ content? Checkout STVinmotion
https://www.stvinmotion.com/?vj=10&campaign=youtube

Composition size
Width:- 4590px
Height:- 1080px

Center screen
Width:- 11' 5.80" (1890px)
Height:- 6' 6.74" (1080px)

Left/Right screen
Width:- 4' 11.06" (810px)
Height:- 6' 6.74" (1080px)

Far Left/Right screen
Width:- 3' 3.37" (540px)
Height:- 6' 6.74"  (1080px)

Output slice transformation resolution W/H = EDID output screen resolution W/H ÷ Composition resolution W/H * Input slice resolution W/H
Note:- This formula applies for only one EDID screen situation.

EDID = Extended Display Identification Data
W/H = Width calculation for width resolution & Height calculation for height resolution
