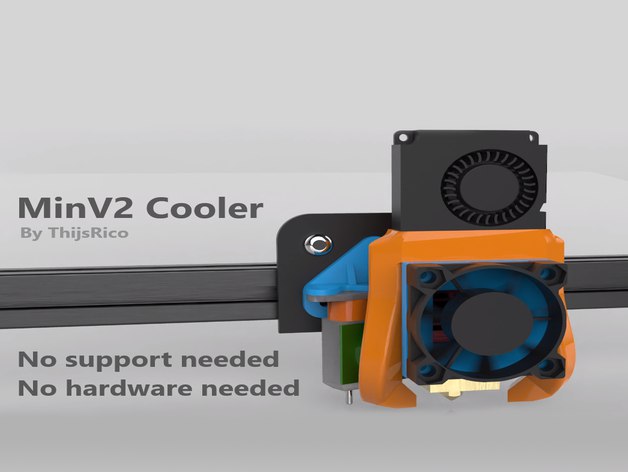

A fan mount that is very quick and easy to print and directs the air more effectively towards the nozzle.
features
bltouch mount
EZABL mount
no support needed
2.5 hours print time
better part cooling
only stock parts
why design another ender 3 fan mount?
Other available coolers require additional hardware, take a long time to print, need support
and require post-processing. I wanted something that was quick and easy to print but still had great cooling performance.
I designed my cooler to print in 2.5 hours at 0.2mm layerheight without the need for any support.
The cooling performance is great, I achieved 70 degree overhangs without loss in quality with the stock blower fan.
print instructions
designed for 0.4 mm nozzle, other nozzle sizes will probably not work as intended.
The complete mount can be printed in three pieces without any support.
No brims needed.
Print the duct with 1 wall and extra skin wall count 0. This is necessary for the print to complete as intended during desing.
I printed in PLA and it's…
