Last updated: July 20, 2020 (more info below)

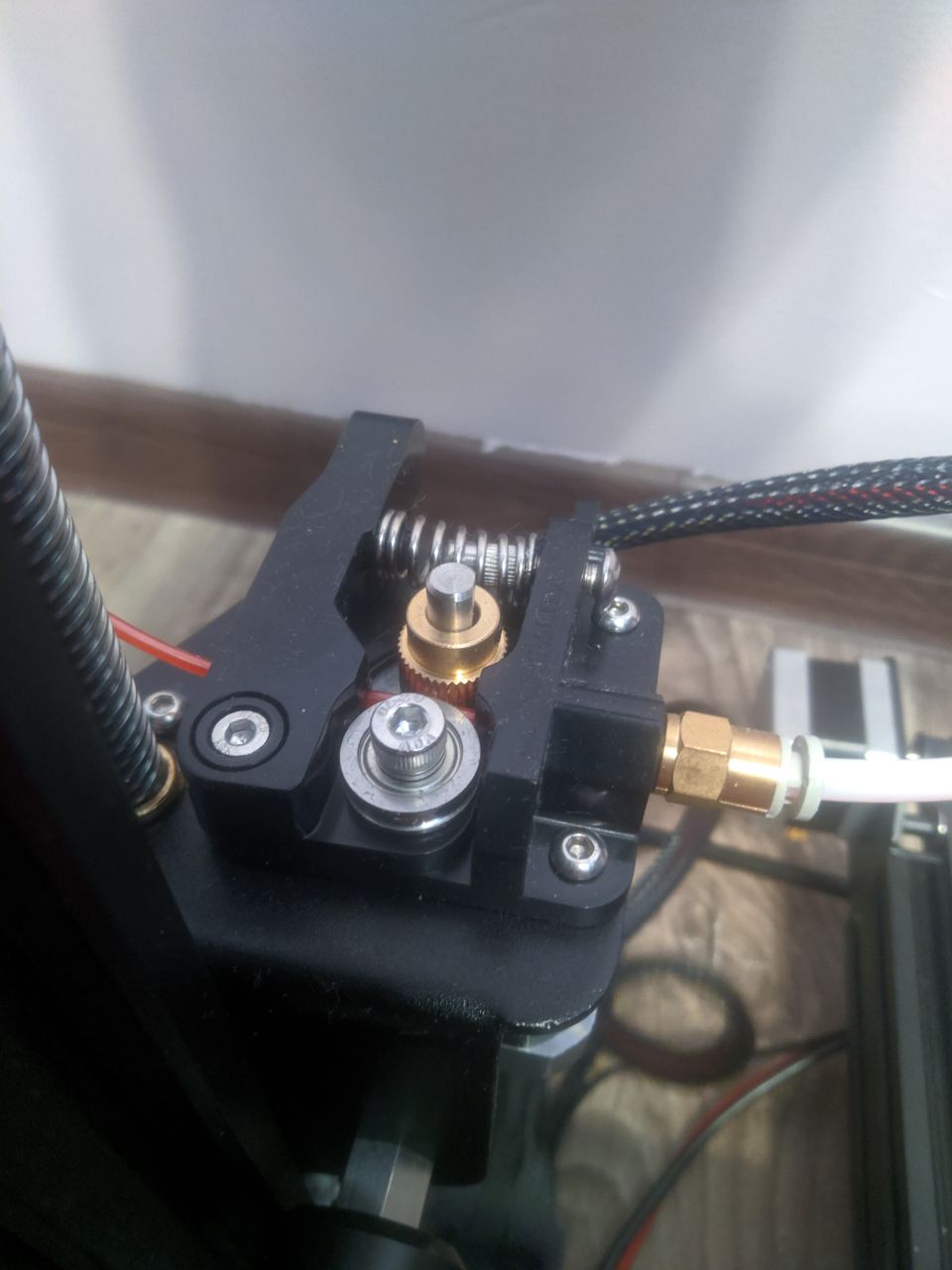

A simple, lightweight, compact, and easy to print direct drive mount for Bondtech BMG, E3D V6/Volcano, and ABL setups. This mount is compatible with open carriage printers such as an Ender 3, Tevo Tornado, Alfawise U20.
This excellent design is originally made by Adolf_Muffin, but I made a couple of improvements:
M3 nut mounting holes and screws
Better BLTouch mount - the original was fragile and it would hit the tension belt adjuster at max X.
Better cable route on Carriage Mount -  moved the original cable route from the right to the left.
List of screws and nuts needed
An Assembly Guide
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Here's the following screws and nuts you'll need:
(13) M3 nuts
(4) M3 x 6 mm BUTTON head
(2) M3 x 8 mm any
(4) M3 x 10 mm any*
(1) M3 x 10 mm BUTTON head*
(1) M3 x 12 mm any
(4) M3 x 20 mm any
If you're using a 4020 hotend fan, use (4) M3 x 25 mm screws.
If you're using a 4010 hotend fan, use (4) M3 x 15 mm screws.…

вы можете использовать или стоковый обдув радиатора e3dv6 (3010) или 4010(4020) или 5015.
смотрите внимательно, как располагается у вас сопло относительно обдува при сборке.
