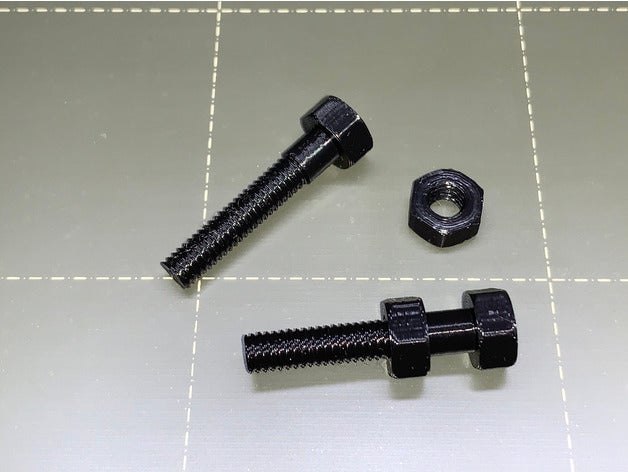

I like Sanding Wedge by Trierscheid https://www.thingiverse.com/thing:4757166 but I do not have M6 bolts or nuts. I decided to create myself for this purpose. I then expanded this project to support multiple length as needed even for other purpose.
M6-1.0mm nut
M6-1.0mm 30mm length 24mm thread bolt
M6-1.0mm 25mm length 19mm thread bolt
M6-1.0mm 20mm length 14mm thread bolt
M6-1.0mm 15mm length 9mm thread bolt
M6-1.0mm 30mm length full thread bolt
M6-1.0mm 25mm length full thread bolt
M6-1.0mm 20mm length full thread bolt
M6-1.0mm 15mm length full thread bolt
When printing, depending on the strength you need, you may want to have higher perimeter value, or use modifier in slicer to strengthen closer to head part by even higher perimeter and/or infill.
Each bolt has thread surface offset by -0.1 mm so it functions with the printed nut.
Example gcode is available. I personally put modifiers in the head to strengthen by adding more perimeters (12) but it is your choice. You may print with 2-3 perimeters, they could…
