Hello, this project is no longer supported, check my new design https://www.thingiverse.com/thing:4778095

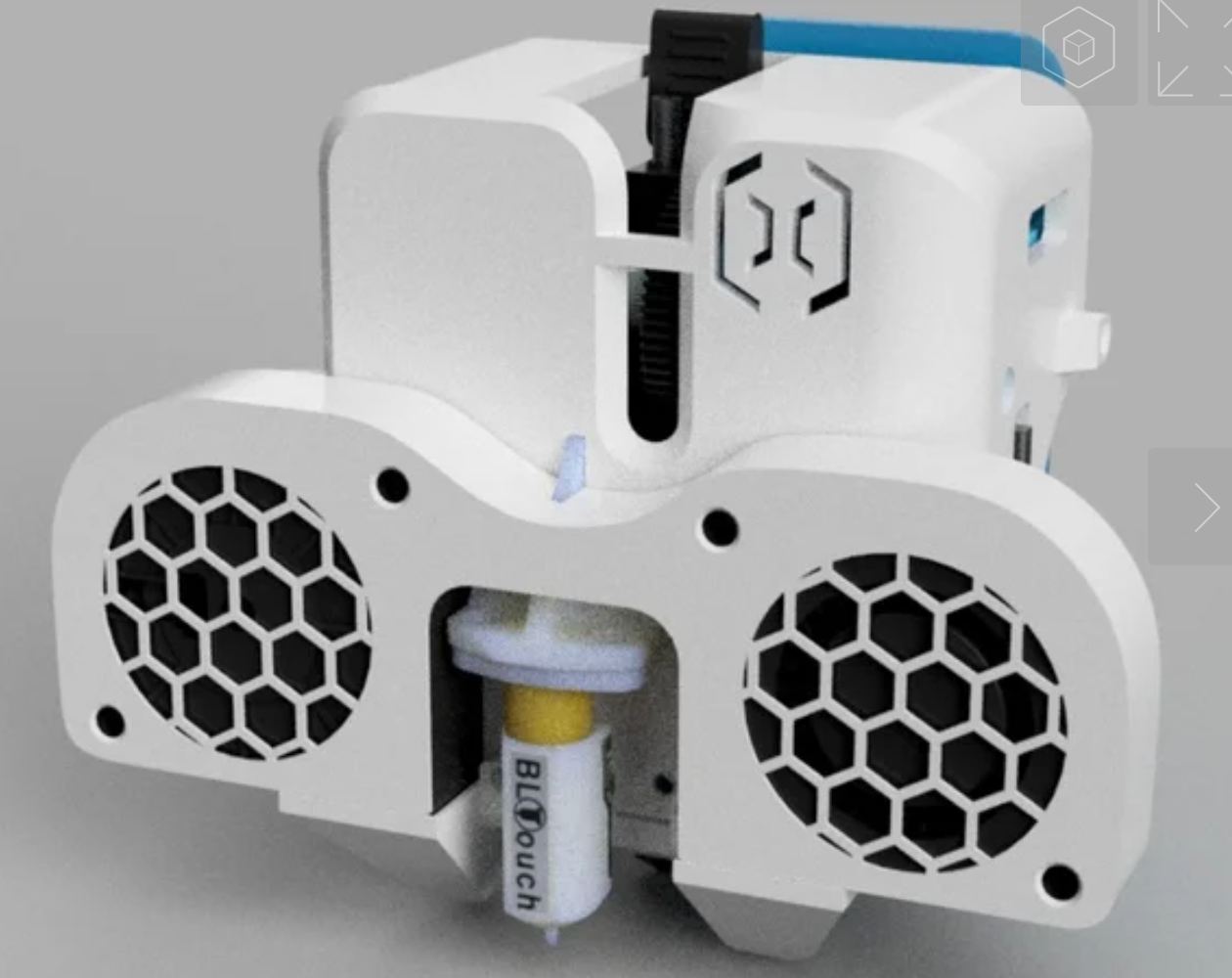

This is hotswap edition of my mount (https://www.thingiverse.com/thing:4316649) - easy to swap between v6 and volcano hotends via 2 M3x30 screws. You don't need to disassemble anymore Titan extruder to swap.
Height of fan ducts from the plane of the nozzle about 2mm.
You should use hotends with only full-metall heatbreaks.
Also you need to install an bowden adapter on titan extruder without PTFE clips and holders.
There is *step file for convenient editing for you purposes and dont't forget to share you remixes :D
You can use any fan mount for heatsink - I use https://www.thingiverse.com/thing:354723
I do not promise that a mounts BLTouch/EZABL/BFPTouch will be added.
Update 09/20/2020 - fixed M3 Nuts holes (added Frame_v2)
Update 02/28/2021 - I decided to stop supporting this project, check my new project here https://www.thingiverse.com/thing:4778095
Версия моего обдува (https://www.thingiverse.com/thing:4316649)…
