Last updated: Mar. 18, 2021 (see Change log section near the bottom of this post)

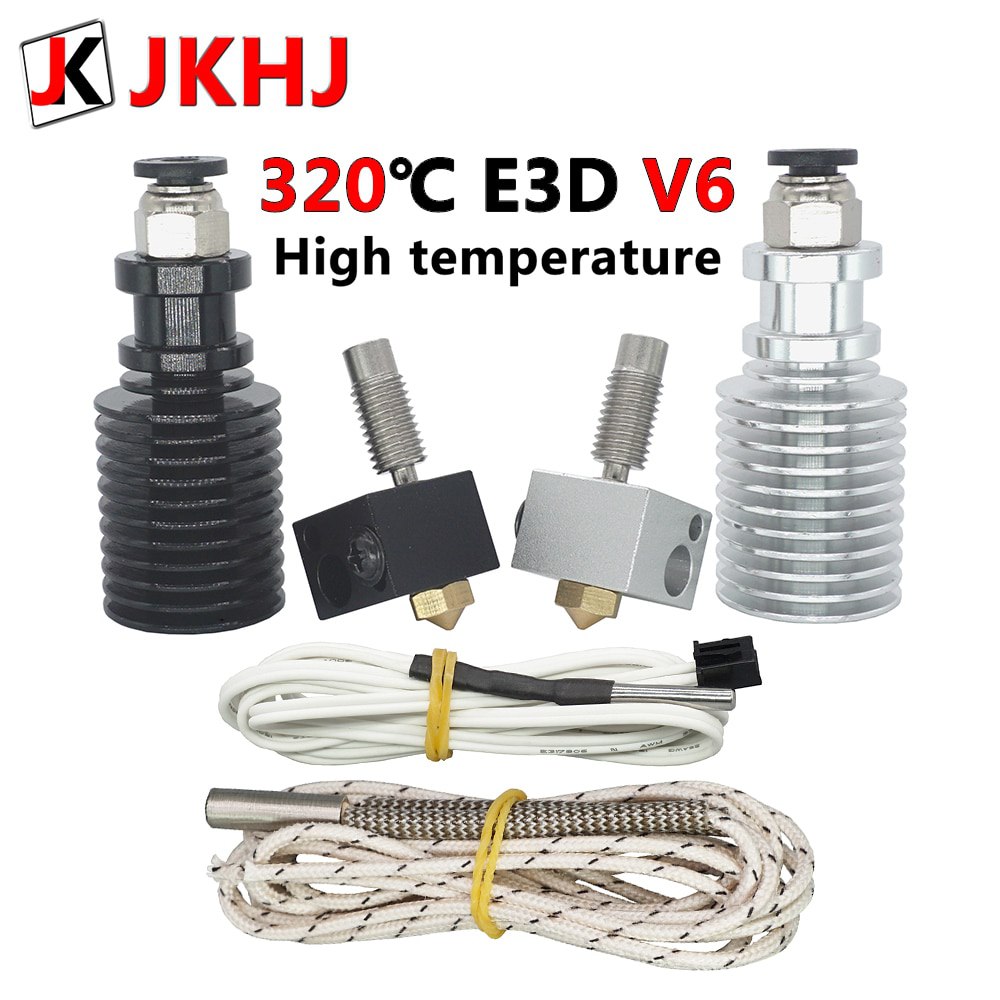

A simple, lightweight, compact, and easy to print direct drive mount for BMG extruders, V6 hotends, and ABL setups. This is compatible with open carriage printers such as an  Ender 3 (Pro), Tevo Tornado, Alfawise U20, etc.
This excellent design is originally made by Adolf_Muffin, but I made a couple of improvements:
M3 nut mounting holes and screws.
Better BLTouch mount - the original was fragile and it would hit the tension belt adjuster at max X.
Better cable route on Carriage Mount -  moved the original cable route from the right to the left.
List of screws and nuts needed.
Guides for Slicing, Assembly, Firmware Config, and Calibration.
— — — — — — — — — — — — — — — — — — — — — — — — — —
Check out the remixes for different machines:
Tronxy X5S by SoDakDave
Ender 3 V2 by db9mat ¹
CR-10 V2/V3 by IssaP
For 18mm EZABL / Capacitive Probes
Check out CephDigital's remix!
His post includes probe offsets and other important details!…
