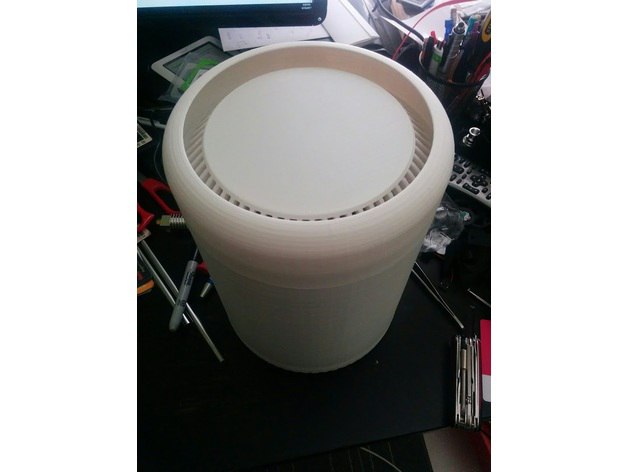

This is my take on a power mac style Mini ITX PC case. I designed it almost a year ago and now decided to make it available for the everyone. It was inspired by the popular
design made by icehardy44. Visually it looks similar but it has many differences.
Designed to be printed on my Prusa I3 clone with with the max print height of 180 mm.
Most if not all Mini ITX motherboard will fit - just insert your metal back plate into back frame. Standard and low profile motherboards supported.
Mother board may be installed on a left or a right side (top and bottom base plates are mirrored).
Compact design - about 260mm total height, 190mm diameter.
There is a lot of flexibility how to place pillars - base plates have holes to install pillars the way you want.
Supports up to 3-4 notebook size SSDs / HDDs, or 1-2 3.5" HDDs
Air cooling by 1 or 2 120mm low profile (15mm) fans - I use Noctua fans. Also standard 120mm x 25mm fan may be used under top grill.
Current design supports external PSU only. I used MoBo with the built…
