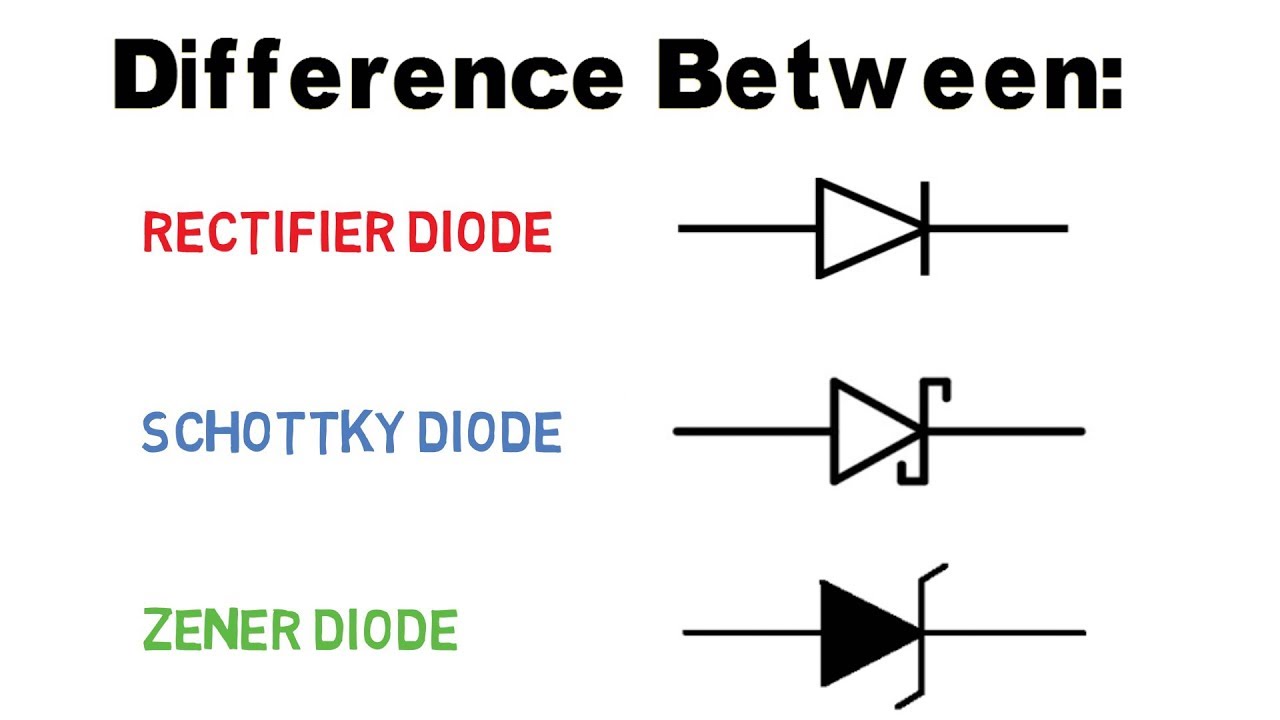

Difference Between Diode, Schottky and Zener Diode ::



1. Rectifier Diode:


Rectifier diode is the simplest p-n junction diode , used mostly for rectification purposes in a half bridge and full bridge rectifier.

2. Schottky Diode

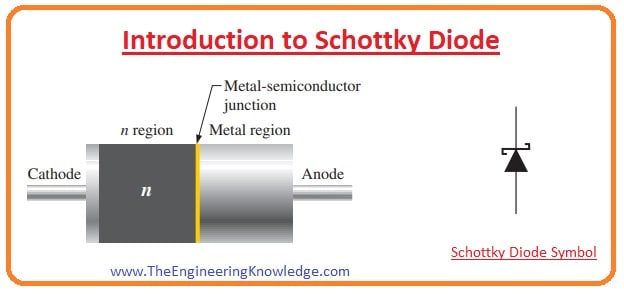

Unlike a rectifier diode, junction of schottky diode is between n-type semiconductor to a metal plate.
Schottky diode also known as barrier diode is mainly used in low voltage circuits because fwd voltage drop of schottky diode(Vf) is less then a rectifier diode typically in the range of .25 to .5 v.

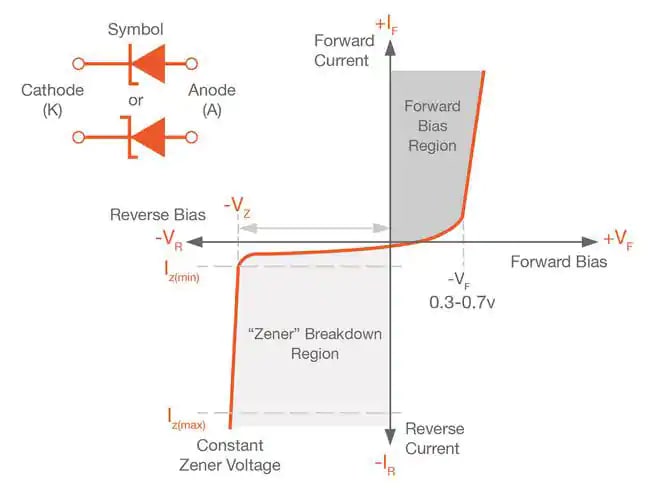

3. Zener Diode:

Zener diode is made up of p-n junction but heavily doped compared to a normal diode. As a result, it can undergo break down without being damaged.
And Due to this property only, zener is used as a voltage regulator…
