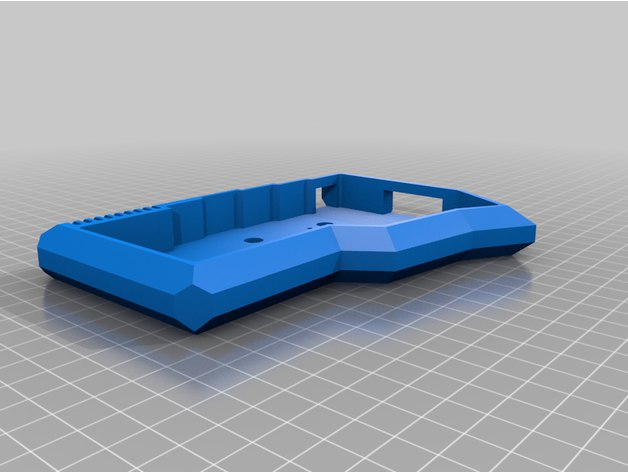

A high profile case for the Corne keyboard (aka Helidox aka crkbd). The design includes two switch plates for Cherry MX compatible switches. Depending on your printer tolerances you may need to file down the switch plate holes slightly to get a snug fit (I did).
Mount the switch plate to the case with 6mm spacers and M2 screws.
Links to the Fusion 360 modes are provided below. Feel free to download and modify them for your own use:
Case: link
Plates link

Just a quick V2 of my case here https://www.thingiverse.com/thing:4039133 :
larger hole for the jack to allow right-angled cables
made some holes for the 6 underglow leds. It's not as visible as with an acrylic case, but if your desk is white or something reflective it should be better.

This is a fun modification of the Corne (CRKBD or Helidox) keyboard that relocates the OLED and the creates a new LED feature. This case is inspired by Star Wars spaceships, industrial machinery, and brutalist architecture.
The plate is 5mm and compatible with MX and ALPs switches; Choc switches will not work. It requires you to break off the last column on the outside of the Corne pcb. Alternatively, this could be handwired.
The case is made of 4 major components and two adjustable sleds per side. These should be printed right side up with the exception of the OLED covers (which are printed upside down to save on support material) and the LED sled (which is printed on it's side so that there are no supports). The LED "sled" is the only part printed in translucent or natural PLA. The LED "sled" acts as a light diffuser so you could use a white PLA as well. The rest of the prints are grey PLA but, you could use whatever color you like. The small "sled" prints are meant to be adjustable because there are differences…
