2020 March 27
AS
в чем дело хз
S
S
мож из этой песочницы ноги растут ?
AS
тоесть нога лишняя ?
S
AS
все сто там гаписано конкретно это я уже делал I was now able to get the TMC5161 run with recent Marlin Bugfix 2.0.x. After checking latest changes at the TMCStepper-Library, i think that i found the reason and i did a test run for a couple of hours now. Till now, the driver and stepper runs without any issues.
Hardware setup:: BTT TMC5161 v1.1 and SKR 1.4 Turbo (LPC1769)
Marlin version:: Branch - bugfix-2.0.x @ 12b3807
My configuration:
For BTT TMC5161 v1.1 with R=0.062
// RSENSE is "0.062f" is float. TMCStepper library v0.6.2 changed it to float! Therefore the float define! teemuatlut/TMCStepper@4016500
Be sure you use the TMCStepper-Lib v0.6.2 in your platformio.ini lib_debs:
TMCStepper@>=0.6.2,<1.0.0
The configuration_adv.h:
#define TMC5161_RSENSE 0.062f // For X, Y, Z end E
#define HOLD_MULTIPLIER 0.5
#define INTERPOLATE false
#define XYZE_CURRENT 800
#define XYZE_MICROSTEPS 16
#define STEALTHCHOP_XY
#define STEALTHCHOP_Z
#define STEALTHCHOP_E
//#define SOFTWARE_DRIVER_ENABLE // --> is disabled!
Give it a try and let us know if this also work for others then me.
Cheers.
Hardware setup:: BTT TMC5161 v1.1 and SKR 1.4 Turbo (LPC1769)
Marlin version:: Branch - bugfix-2.0.x @ 12b3807
My configuration:
For BTT TMC5161 v1.1 with R=0.062
// RSENSE is "0.062f" is float. TMCStepper library v0.6.2 changed it to float! Therefore the float define! teemuatlut/TMCStepper@4016500
Be sure you use the TMCStepper-Lib v0.6.2 in your platformio.ini lib_debs:
TMCStepper@>=0.6.2,<1.0.0
The configuration_adv.h:
#define TMC5161_RSENSE 0.062f // For X, Y, Z end E
#define HOLD_MULTIPLIER 0.5
#define INTERPOLATE false
#define XYZE_CURRENT 800
#define XYZE_MICROSTEPS 16
#define STEALTHCHOP_XY
#define STEALTHCHOP_Z
#define STEALTHCHOP_E
//#define SOFTWARE_DRIVER_ENABLE // --> is disabled!
Give it a try and let us know if this also work for others then me.
Cheers.
S
I've cut the "CLK Pin" like on the 5160 V1.2 mentioned from the BTT support. Well, I think I've wasted 65 € with this pieces...
S
... нога не лишняя %)
S

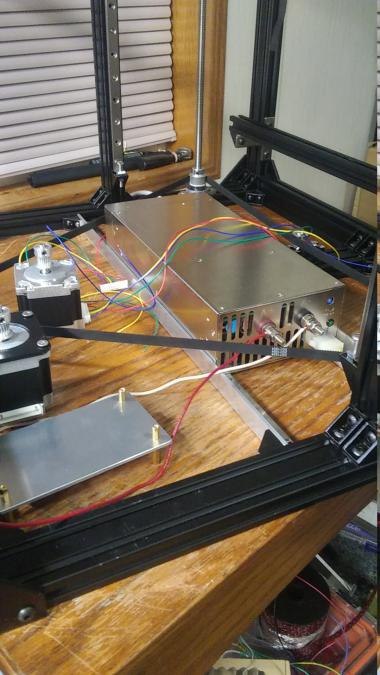

а свеженькая трабла
AS
да тока ток самособой ставил свой по 23 нема 3100ма
S
мнээ... а в каком режиме должен работать драйвер
S
ибо все что атм пишут это не стендалон
AS
в рабочем :)
S
скока скока...
AS
3.1а
AS
#if HAS_TRINAMIC
#define HOLD_MULTIPLIER 0.5 // Scales down the holding current from run current
#define INTERPOLATE true // Interpolate X/Y/Z_MICROSTEPS to 256
#if AXIS_IS_TMC(X)
#define X_CURRENT 3100 // (mA) RMS current. Multiply by 1.414 for peak current.
#define X_MICROSTEPS 256 // 0..256
#define X_RSENSE 0.075
#define HOLD_MULTIPLIER 0.5 // Scales down the holding current from run current
#define INTERPOLATE true // Interpolate X/Y/Z_MICROSTEPS to 256
#if AXIS_IS_TMC(X)
#define X_CURRENT 3100 // (mA) RMS current. Multiply by 1.414 for peak current.
#define X_MICROSTEPS 256 // 0..256
#define X_RSENSE 0.075
S
а у тя точно 0.075 резюки
S
максимальный ток дров 3.5, 70% это 2.45
