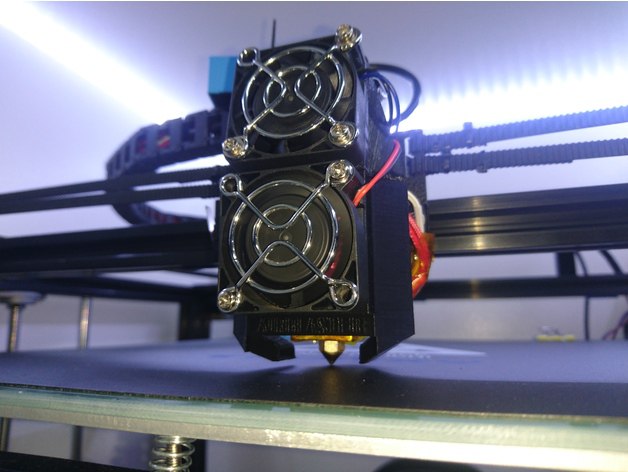

AirBlaster fan mount replaces the standard metal fan mount provided for Tronxy X5S in order to increase the cooling efficiency using the out of the box fans.
The top fan cools the plastic as it is being extruded onto the surface using two side ducts which divert airflow towards the extruder nozzle tip. It is also designed with ease in mind as it slides directly into the bottom unit without any screws for easy access to the tube connector if blockages occur or when the plastic filament replacement is required.
The bottom fan is designed to direct air through the extruder heat sink more efficiently by allowing air to pass through the ribs of the heat sink rather than dispersing the air around it.
